How to setup OLED65b7a with xbox, cable box, video receiver?


Mark Tiede

Question

I just got this OLED65b7a TV yesterday.  I have everything set up.

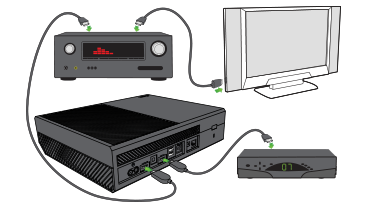

My setup is shown in the attachment

I have a couple of problems I can't resolve.

1. Sound comes from two sources simultaneously.

   I turn on the xbox which turns on the receiver and the cable box and outputs signal back to receiver to the TV (hdmi ARC).

   I turn on the TV and see and hear the TV through the xbox.  (or I choose a game or something else on the xbox and see and hear that on the TV)

   I choose on the TV to show Live TV from the internet.

   Now both sounds come out from both sources.  I think the sound system is doing one and the TV speakers are doing the Live TV.



2. I want to control the cable box with the remote.

    When I want to configure the remote for the cable box, it wants the cable box to be plugged into the TV.  If I do that, the remote can control the cable box, but when I return the hdmi to the receiver, I don't think the remote still worked.  I think it said there was nothing connected or something.



3. Should I be changing my connections?

    Should I be plugging the cable box and the xbox into the TV?  And then go from the TV to the receiver?  How will the remote work then?  Will I be able to turn the xbox on and off with the TV remote?  Will I have to disable the devices that the xbox is turning on and off through the Kinect IR blaster?



Thanks a lot for any direction in this.  So far I haven't found anything on the web that is set up like mine to model after.

xbox cable setup.png

Link to comment
Share on other sites

  • Answers 4
  • Created
  • Last Reply

Top Posters For This Question

Top Posters For This Question

Posted Images

4 answers to this question

Recommended Posts

  • 0

I think part 3 was the answer.  I changed the wiring so that the cable box and the xbox plugged into the tv.  Then the TV connected to the receiver through the ARC connection.  Then I had to change the receiver to allow HDMI Control.  I think everything is working as expected now.  Cable box and receiver seem to be controlled by the LG magic remote.  I miss is being able to turn the xbox on with the LG remote.  I guess I can either use voice or the controller for that when it is needed.  I used to have the xbox control all the devices, but I guess if I'm not really doing games, I don't need to have it on.  Although the OneGuide in the xbox allowed me to quickly go through my Favorites and I don't see a way to do that with the current hook up.

Have to experiment with it more.

Link to comment
Share on other sites

  • 0

What type of receiver do you have? Make and model. If it supports 4K pass-through, your best bet is to plug every component - the Xbox, cable box, any streaming devices, etc. - through it and then go from the HDMI out on the receiver to the HDMI2/ARC input on the TV. With HDMI-CEC, the receiver will then automatically switch between inputs as each becomes active. turn on the Xbox, the receiver will switch over to it for audio and video. I have two Playstations, a Philips 4K disc player and a Chromecast Ultra hooked up this way, and switching between them is seamless.

Link to comment
