E9 no response on Homekit

[tvguy]

Anyone else having homekit connectivity issues? I am good until the TV turns on at which point I get no response from the home app and it essentially breaks. Frustrating.

Any ideas?

[mrwigster]

+1 for this issue—though I have the opposite problem on my C9, I can do everything when the TV is on, including turn it off, however, when it's off it then states "No Response" within the Home app on my iPhone or iPad.

[Jespertheend]

I was having the same issue as mrwigster. It would say no response when the tv was off. And then it just magically fixed itself. I had to reset the tv settings because of a different issue though, and now it’s not working anymore

I’m hoping it magically fixes itself again.

[Derek Austin]

@mrwigster

On 8/9/2019 at 1:49 AM, mrwigster said:

+1 for this issue—though I have the opposite problem on my C9, I can do everything when the TV is on, including turn it off, however, when it's off it then states "No Response" within the Home app on my iPhone or iPad.

Likewise. TV disappears after turning it off.

[Jespertheend]

Hmm interesting, homekit not working when the tv is off makes sense to me. The tv is off so some sort of connection is closed probably. But having it not working when it’s off but not when on is a bit strange.



in other news, my tv fixed itself and now I can turn it on from homekit as well. I happened to be messing around with my soundbar when it started working but I’m not sure if that’s what triggered it.

[robertapple1]

On 8/7/2019 at 4:34 PM, tvguy said:

Anyone else having homekit connectivity issues? I am good until the TV turns on at which point I get no response from the home app and it essentially breaks. Frustrating.

Any ideas?

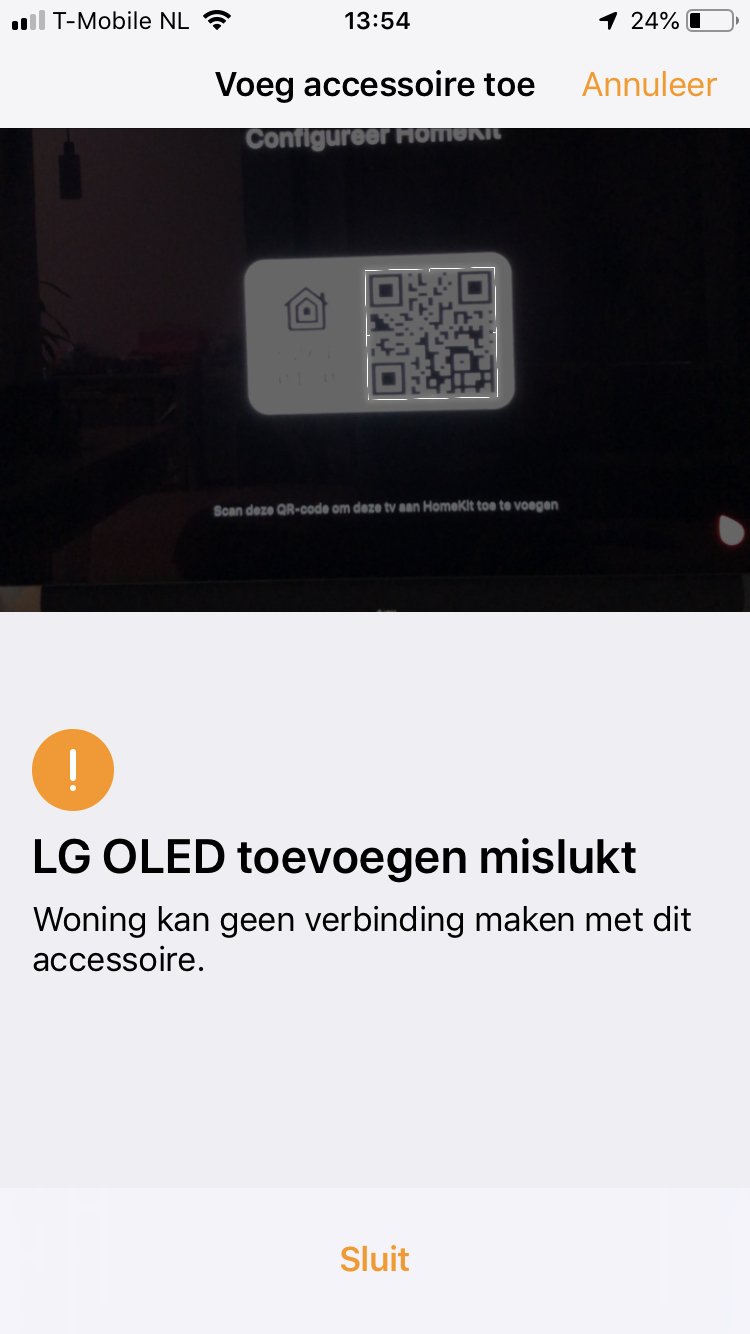

I have a problem as well. I am unable to connect my LG OLED 55C9 to Homekit. Every time I scan the QR code generated by my TV with the Homekit app I get a message in the Homekit app that adding LG OLED to Homekit has failed. Airplay works fine; I tried with the  TV connected wired and through (the same) WiFi network, no result. With other iPhone no result either.

Some Airplay features work, others not:

MacBook Pro:  ScreenMirror works, playing films from iTunes works, playing films directly from QuickTime and selecting Airplay to LG TV DOESN'T work.

iPhone: Airplay works with all features

Edited September 1, 2019 by robertapple1
adde fotot

[tvguy]

That happened to me and factory default reset on the LG fixed it. You might try it.

[robertapple1]

41 minutes ago, tvguy said:

That happened to me and factory default reset on the LG fixed it. You might try it.

Tx; I already tried it (and had to re-configure al image settings as well), but unfortunately no result.....

[chris4prez]

On 8/8/2019 at 11:49 AM, mrwigster said:

+1 for this issue—though I have the opposite problem on my C9, I can do everything when the TV is on, including turn it off, however, when it's off it then states "No Response" within the Home app on my iPhone or iPad.

I am having the same issue.  I have a LG C9 65in and an LG C9 55in and both at times show not responding in HomeKit, as well as, when I use Siri to turn them on, they will turn on but it may say "I tried but some devices didn't respond, however it will still turn on.".  This especially happens when the TV may be off for a period of time.  Once the TV is on the state is always reflected correctly in Homekit and I can issue input changes or off requests to siri with no issues.  I've tried resetting the TVs and my Apple Homekit home with no resolution.  Hopefully this is an issue that can be resolved by updated FW for the TVs and/or the coming iOS13. (I'm more apt to think this is an issue on the TV side.)

[robertapple1]

A conversation with Apple helped me realise the problem. The Apple guy asked: is bluetooth (BT) on? Of course it was, but then it hit me: Airplay control works with BT. And therein lies the problem.

When I bought the TV it automatically recognised my settop-box/decoder (Ballard Rural Telephone Cooperation is how it is called on my TV; it is provided by T-Mobile Netherlands). This set-up makes it possible to use the LG Magic Remote as a universal RC to control my settop box. This feature uses BT.......

After disconnecting the LG Magic Remote from the settop box, the Homekit app on my iPhone recognised my LG TV and added it as an accessory. Succes at last. BUT, after setting up my LG Magic Remote again to control my settop box, the Homekit app didn't get a respons from the LG TV anymore.

My conclusion is, that there is a Bluetooth protocol interference at play here, that I as a user cannot fix. My opinion is that LG needs to contact Apple to streamline each others usage of BT protocols, and come up with a firmware update.

At the moment I choose in favour of using my settop box with the LG Magic Remote, as the functionality of the HomeKit controls of the TV is limited, but I would love to be able to use both.

[Jespertheend]

@robertapple1 ah hmm interesting. I always thought the tv homekit integration used the local (wifi) network for communicating.

[robertapple1]

15 minutes ago, Jespertheend said:

@robertapple1 ah hmm interesting. I always thought the tv homekit integration used the local (wifi) network for communicating.

That is true. But still it looks like both, or at least they interfere. When connecting the LG to Homekit, a brief message appears on the right upper side of the screen, stating that "Switching on using BT" is turned on in the TV and wil use extra energy.  A fact is, when I disconnect my LG Magic Remote from my decoder/settop-box, the LG TV is visible and can be operated using Homekit



[mija]

@robertapple1 here also from the Netherlands. I don't use a settop box and I to have this problem. For now I connect the TV via Homebridge to Homekit and that works flawless.

[Jespertheend]

31 minutes ago, robertapple1 said:

When connecting the LG to Homekit, a brief message appears on the right upper side of the screen, stating that "Switching on using BT" is turned on in the TV and wil use extra energy.

Hmm I'm not seeing that message, though when I turn off bluetooth on my phone it doesn't connect anymore, so it must be using BT then.

All is working fine for me now, not sure what's different about my setup compated to others. I do occasionally get disconnected (it happened just now) but I'm not sure what's causing it. My TV turned off out of nowhere just now, right after turning it on, I think it might be CEC. Right after it turned off homekit was reporting 'now response'. But after I started it with the remote everything worked fine again.

[chris4prez]

@robertapple1 - very interesting.  I always thought all the homekit/airplay functionality was performed over IP.  It looks like it may be a combo of both IP and bluetooth.  To test this theory, I disabled bluetooth control of the TV and I was no longer able to turn it on via homekit, but the odd thing is, I was able to turn it off, change inputs, and still airplay. Leading me to believe when the tv is in low power mode or where a user would consider the state "off" it uses bluetooth to wake it, then controls when it's consider in an "on" state are sent via IP.  This may explain why control is reliable and seen in homekit with no issues when on, but when "off" or in a low power mode showing the not responding in homekit because of bluetooth issues.



This also makes me wonder how bluetooth control is handled to the tv when commands are issued by say homepods.  I have multiple apple tvs and home pods around the house acting as homekit hubs, which to me thinks I would have a reliable bluetooth connection to monitor the tv state and should never see the not responding while "off".  I wonder how we can further troubleshoot this or if anyone knows how homekit handles bluetooth devices.





[Jespertheend]

5 minutes ago, chris4prez said:

This also makes me wonder how bluetooth control is handled to the tv when commands are issued by say homepods

I have AppleTV but I can't seem to turn off bluetooth so I can't test it, but I'm assuming it uses bluetooth just like your phone. So when you are away from your tv the homekit hub just sends a bluetooth message to the tv just like your phone would.

[chris4prez]

Just now, Jespertheend said:

I have AppleTV but I can't seem to turn off bluetooth so I can't test it, but I'm assuming it uses bluetooth just like your phone. So when you are away from your tv the homekit hub just sends a bluetooth message to the tv just like your phone would.

@Jespertheend - turn off bluetooth control on the LG TV under the connection options, that's what I did for testing.

[Jespertheend]

@chris4prez ah cool, I was wondering where you found that setting. I tried it and appletv seems to be using bluetooth as well. So it seems like both homekit hubs, as well as your phone using homekit, as well as the LG TV Plus app are using bluetooth to turn on the tv. Not sure what the 'Turn on via Wi-Fi' setting is for then.

[chris4prez]

3 minutes ago, Jespertheend said:

@chris4prez ah cool, I was wondering where you found that setting. I tried it and appletv seems to be using bluetooth as well. So it seems like both homekit hubs, as well as your phone using homekit, as well as the LG TV Plus app are using bluetooth to turn on the tv. Not sure what the 'Turn on via Wi-Fi' setting is for then.

Yea and the weird thing is I have a hompod and an apple tv both within 3 feet of the TV yet I still can get the not responding in Homekit which I would expect to have strong signal to the TV to monitor it's state and control from an off state.

The control via IP is used for systems like Crestron, Control 4, SimpleControl, etc.  I've use SimpleControl flawlessly but really want to move to Homekit for control, status monitoring (know state of tv whether controlled by remote or idevices). and automations so I can reduce yearly fees and simplify setup for the WAG usage.

[robertapple1]

1 hour ago, mija said:

@robertapple1 here also from the Netherlands. I don't use a settop box and I to have this problem. For now I connect the TV via Homebridge to Homekit and that works flawless.

Never heard of Homebridge b4 (just read about it now); it is a solution, but requires third party hardware & software. IMO that should not be necessary with a top of the line product

[robertapple1]

1 hour ago, Jespertheend said:

Hmm I'm not seeing that message, though when I turn off bluetooth on my phone it doesn't connect anymore, so it must be using BT then.

All is working fine for me now, not sure what's different about my setup compated to others. I do occasionally get disconnected (it happened just now) but I'm not sure what's causing it. My TV turned off out of nowhere just now, right after turning it on, I think it might be CEC. Right after it turned off homekit was reporting 'now response'. But after I started it with the remote everything worked fine again.

You only see that message briefly when you scan the QR-code from the TV with Homekit
